l=3,n=8, exp.1

-->l=3,p=5,n=8,show=2,[POP,tcw,ratio,f1,f0]=ftcw(POP,l,p,n,show)

    0.    0.    1.    1.    1.     0.0106383
    0.    0.    1.    1.    1.     0.0106383
    0.    0.    1.    1.    1.     0.0106383
    1.    0.    0.    4.    16.    0.1702128
    0.    0.    0.    0.    0.     0.
    1.    0.    1.    5.    25.    0.2659574
    0.    0.    1.    1.    1.     0.0106383
    1.    1.    1.    7.    49.    0.5212766


 f0  =

    0.6914894
 f1  =

    2.3085106
 ratio  =

    3.3384615
 tcw  =

    3.2283598

Mutation does not improve the result.

-->l=3,p=5,n=8,N=(round(tcw)*2)*3, MThreshold=tcw*2,show=2,[POP]=ga(POP,l,p,n,N,
MThreshold,show)

mutation point at = (1, 1)
mutation point at = (4, 1)

Number of Events n * N = 144

 POP  =

    23.979592
    63.77551
    85.459184
--------------------- tcw
++++++++++++++++++++++
    85.459184
    85.459184
    85.459184
    85.459184
    85.459184
    75.255102
    85.459184
    85.459184
    85.459184
    85.459184
    85.459184
    85.459184
    75.255102
    84.438776
    84.438776

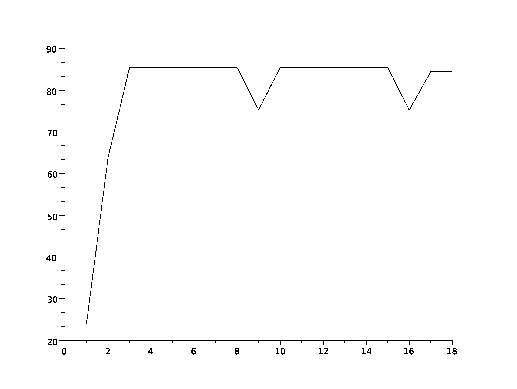

Figure 3.31: worst case convergence time tcw measured with l=3, n=8, exp-1
\includegraphics[width=4.5in]{fratall_l3n8_exp1.eps}
