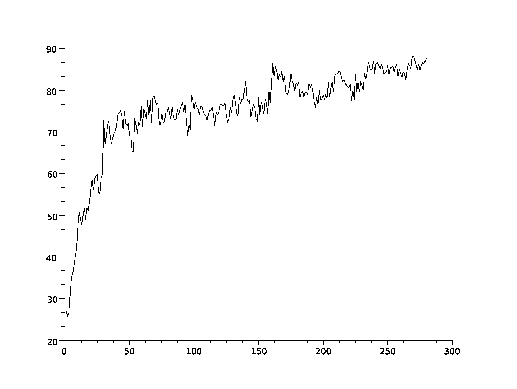

A fourth run with an increase in the number of population elements to 12 and with a mutation rate MT=70 shows suddenly a significant improvement The values are now not centering around some mean value but are continuously increasing towards some maximum.
![\includegraphics[width=4.5in]{gaw2_n12l12N280MT70_4.eps}](img1092.png)
-->n=12, l=12
-->[POP]=popgen(n,l)
POP =
0. 0. 0. 1. 0. 1. 1. 1. 0. 1. 0. 1.
1. 1. 0. 0. 0. 0. 0. 0. 0. 0. 1. 1.
1. 1. 1. 1. 1. 0. 0. 0. 0. 0. 0. 1.
0. 0. 0. 0. 0. 1. 0. 1. 1. 0. 1. 1.
0. 1. 0. 1. 1. 0. 0. 1. 1. 0. 1. 0.
0. 0. 0. 0. 1. 0. 1. 0. 1. 0. 0. 0.
1. 1. 1. 1. 1. 0. 0. 0. 0. 0. 0. 0.
0. 0. 0. 1. 1. 0. 0. 0. 0. 1. 0. 1.
0. 0. 1. 1. 0. 0. 1. 1. 0. 0. 0. 0.
1. 0. 0. 1. 0. 1. 0. 0. 0. 1. 1. 0.
1. 0. 1. 0. 0. 1. 1. 1. 1. 0. 1. 1.
0. 0. 1. 0. 1. 0. 1. 1. 0. 0. 0. 1.
-->N=280, MT=round(N/4),b=2,show=2,[FITNESS_ALL_PERC,POP]=gaw2(W,POP,l,n,N,
MT,b,show)
mutation point at row = 1 col = 2
Mutation at cycle = 72
mutation point at row = 1 col = 9
Mutation at cycle = 143
mutation point at row = 7 col = 8
Mutation at cycle = 214
Number of Events n * N = 3360
POP =
column 1 to 12
0. 1. 0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 0. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 0. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 0. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
column 13 to 21
0. 47. 0.0744849 0.8938193 1. 0. 0. 0. 0.
0. 60. 0.0950872 1.141046 1. 0. 0. 0. 1.
0. 60. 0.0950872 1.141046 1. 0. 0. 0. 1.
0. 60. 0.0950872 1.141046 1. 0. 0. 0. 1.
0. 44. 0.0697306 0.8367670 1. 0. 0. 1. 0.
0. 46. 0.0729002 0.8748019 1. 0. 0. 1. 1.
0. 60. 0.0950872 1.141046 1. 0. 0. 0. 1.
0. 44. 0.0697306 0.8367670 1. 0. 0. 0. 1.
0. 60. 0.0950872 1.141046 1. 0. 0. 0. 1.
0. 49. 0.0776545 0.9318542 1. 0. 0. 0. 1.
0. 41. 0.0649762 0.7797147 1. 0. 0. 0. 0.
0. 60. 0.0950872 1.141046 1. 0. 0. 0. 1.
column 22 to 31
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
0. 1. 1. 0. 0. 1. 1. 1. 1. 0.
1. 1. 1. 0. 0. 1. 1. 1. 1. 0.
FITNESS_ALL_PERC =
1. 26.944444
2. 25.694444
3. 26.527778
4. 31.111111
5. 35.277778
6. 36.111111
7. 37.916667
8. 40.277778
9. 41.944444
10. 47.5
11. 50.833333
12. 49.027778
13. 47.638889
14. 50.
15. 51.805556
16. 48.888889
17. 51.666667
18. 51.25
19. 53.055556
20. 56.25
21. 58.611111
22. 56.111111
23. 58.75
24. 59.305556
25. 60.
26. 55.555556
27. 55.277778
28. 59.027778
29. 59.722222
30. 72.916667
31. 66.666667
32. 69.166667
33. 71.666667
34. 72.5
35. 68.888889
36. 67.083333
37. 68.611111
38. 69.722222
39. 70.277778
40. 71.805556
41. 74.166667
42. 74.722222
43. 75.
44. 74.166667
45. 70.694444
46. 75.
47. 72.083333
48. 71.527778
49. 71.944444
50. 69.027778
51. 69.027778
52. 65.416667
53. 65.277778
54. 73.333333
55. 71.666667
56. 69.583333
57. 72.222222
58. 71.805556
59. 76.388889
60. 71.25
61. 75.555556
62. 74.583333
63. 73.194444
64. 77.5
65. 74.027778
66. 77.638889
67. 72.222222
68. 78.333333
69. 78.611111
70. 77.5
71. 76.527778
72. 76.944444
73. 71.944444
74. 71.666667
75. 74.305556
76. 72.222222
77. 72.5
78. 74.444444
79. 74.583333
80. 75.972222
81. 74.444444
82. 73.055556
83. 75.972222
84. 73.472222
85. 72.916667
86. 73.055556
87. 75.416667
88. 74.027778
89. 75.277778
90. 76.25
91. 76.944444
92. 74.722222
93. 76.527778
94. 72.638889
95. 69.166667
96. 71.805556
97. 70.555556
98. 78.75
99. 77.638889
100. 75.416667
101. 77.222222
102. 75.972222
103. 75.416667
104. 74.027778
105. 75.972222
106. 76.25
107. 75.
108. 74.166667
109. 74.027778
110. 72.638889
111. 74.166667
112. 75.138889
113. 75.138889
114. 75.833333
115. 74.166667
116. 71.527778
117. 74.722222
118. 74.027778
119. 74.583333
120. 76.388889
121. 76.666667
122. 76.388889
123. 76.388889
124. 76.805556
125. 73.888889
126. 72.361111
127. 73.194444
128. 75.972222
129. 74.583333
130. 77.638889
131. 78.75
132. 76.944444
133. 74.444444
134. 73.888889
135. 78.333333
136. 76.944444
137. 77.916667
138. 77.777778
139. 80.138889
140. 82.083333
141. 78.194444
142. 77.222222
143. 77.5
144. 73.611111
145. 75.138889
146. 76.527778
147. 75.694444
148. 73.194444
149. 72.638889
150. 78.333333
151. 74.027778
152. 77.083333
153. 76.111111
154. 74.305556
155. 77.916667
156. 77.083333
157. 74.305556
158. 80.138889
159. 76.805556
160. 81.944444
161. 86.527778
162. 83.333333
163. 85.694444
164. 84.861111
165. 82.222222
166. 83.888889
167. 83.194444
168. 84.583333
169. 81.944444
170. 83.333333
171. 79.583333
172. 79.027778
173. 79.305556
174. 81.111111
175. 84.305556
176. 82.222222
177. 81.527778
178. 79.861111
179. 81.805556
180. 81.25
181. 81.944444
182. 78.333333
183. 79.444444
184. 79.722222
185. 78.333333
186. 79.444444
187. 79.583333
188. 79.027778
189. 81.666667
190. 80.694444
191. 81.388889
192. 79.722222
193. 77.083333
194. 75.833333
195. 78.194444
196. 76.527778
197. 80.
198. 77.777778
199. 77.916667
200. 78.75
201. 77.916667
202. 78.888889
203. 78.194444
204. 82.083333
205. 78.333333
206. 80.694444
207. 81.944444
208. 79.583333
209. 83.472222
210. 83.888889
211. 83.888889
212. 84.444444
213. 84.583333
214. 83.333333
215. 82.083333
216. 82.5
217. 81.805556
218. 81.111111
219. 80.833333
220. 80.555556
221. 81.388889
222. 77.361111
223. 79.861111
224. 77.777778
225. 83.75
226. 79.583333
227. 81.944444
228. 79.583333
229. 81.944444
230. 81.25
231. 80.138889
232. 84.166667
233. 82.638889
234. 84.305556
235. 86.805556
236. 85.416667
237. 84.722222
238. 85.
239. 87.083333
240. 84.027778
241. 86.388889
242. 86.666667
243. 85.972222
244. 85.138889
245. 86.111111
246. 85.416667
247. 83.75
248. 84.305556
249. 84.444444
250. 85.972222
251. 83.888889
252. 85.277778
253. 85.555556
254. 85.694444
255. 84.305556
256. 85.555556
257. 86.111111
258. 83.055556
259. 85.
260. 84.166667
261. 83.194444
262. 84.444444
263. 84.027778
264. 82.5
265. 84.722222
266. 86.388889
267. 85.833333
268. 85.
269. 88.194444
270. 88.194444
271. 87.222222
272. 85.972222
273. 85.
274. 86.111111
275. 84.722222
276. 85.972222
277. 86.666667
278. 86.388889
279. 86.944444
280. 87.638889
